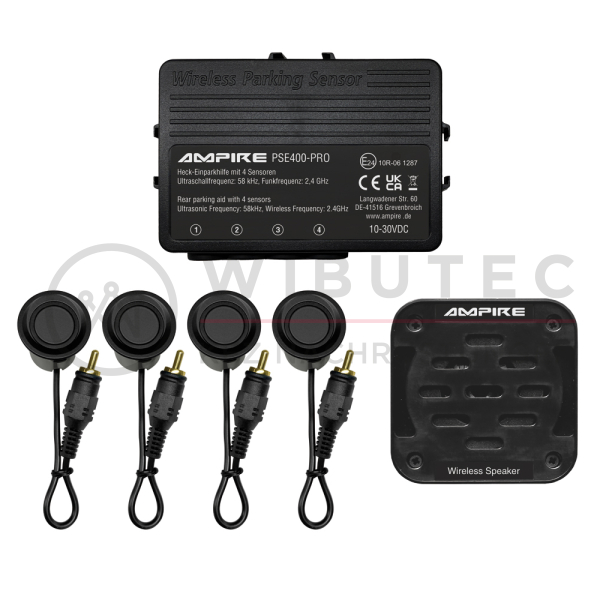

AMPIRE Rear Parking Assistance, 4-sensor, Matte Black, Front and Undermount Installation, Waterproof

AMPIRE Rear Parking Assistance, 4-sensor, Matte Black, Front and Undermount Installation, Waterproof

SKU: PSE400-PRO
GTIN: 4260052643808
Category: Rear parking sensors

249,00 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Delivery time: 2 - 4 Workdays (DE - int. shipments may differ)

set

Description
Reviews
PDF (1)

Finally, you have found a parking space. You do not want to hold up the traffic behind you any longer than necessary, and the parking space is not that large either. Now it is time to act quickly while maintaining full awareness. Even a small moment of inattention can have serious consequences. A minor parking incident can quickly result in costs of 500 EUR or more.

Like a passenger guiding you with a trained eye, the waterproof AMPIRE rear parking assistance helps you with this small challenge — only much faster and more reliably. This system, specially developed for open vehicles and trailers, activates automatically when reverse gear is engaged and enables seamless monitoring of the rear area. You are warned acoustically in good time about obstacles, helping to prevent personal injury and property damage — and parking becomes effortless. The sensors can be mounted, together with the supplied surface brackets, underneath trailers, flatbeds, or other open constructions. Wireless transmission to the speaker operates at 2.4 GHz and is suitable for vehicles and vehicle combinations up to a maximum length of 30 m.

Your advantages at a glance

Complete monitoring behind the vehicle
Automatic activation when reverse gear is engaged
Timely warning of obstacles
Prevention of personal injury and property damage
Easy parking in tight parking spaces
Self-diagnosis function
Acoustic warning
4 ultrasonic sensors for bumper installation at the front or for mounting underneath the vehicle / trailer
22 mm drill hole, 24 mm installation depth
Adjustable range between 30 cm to 100 cm and 30 cm to 260 cm
Range (factory setting) from 160 cm to 30 cm
Extremely easy installation via plug connections
Wireless connection between the control unit and the speaker, maximum range 30 m
Waterproof housing
E-type approval E24 10R-06 1287

Technical data

Ultrasonic frequency: 58 kHz
Radio frequency between control unit and speaker: 2.4 GHz
Temperature range: -40°C to +80°C
Operating voltage: 10–30 VDC
Current consumption control unit (max): 55 mA
Current consumption speaker (max): 80 mA
Current consumption ACC off: 0 mA
Sensor cable lengths: 235 cm
Ranges
- Level 1: 30–100 cm
- Level 2: 30–130 cm
- Level 3: 30–160 cm (factory setting)
- Level 4: 30–210 cm
- Level 5: 30–260 cm
Total weight: 512 g

Optional accessories

Hole saw 22 mm, item number LS22.0
Display unit, item number PSD400

Important note

Please connect the positive terminal of the speaker to the ignition line (KL15).
Installation of the sensors in metal bumpers is only possible with optional accessories.

Downloads

Installation required?

We will gladly carry out the complete installation on your vehicle at a fixed price of only 339 euros. Appointment requests can be submitted via email using our contact form . For an additional charge of only 59 euros, the sensors can be painted in the vehicle color by the neighboring paint shop. The complete installation takes approximately 3 hours.
