Vehicle-Specific Reversing Camera Accessory Retrofit Kit for VW Crafter SY incl. Separate Display or Plug & Play Connection Adapter for Radio or Navigation System
Vehicle-specific retrofit kit for installing a reversing camera in the new VW Crafter SY. The reversing camera is mounted at the third brake light (just like the factory-installed version). Depending on the selected version, the camera image can be displayed either on the original radio/navigation display or on a separate monitor. When connecting to the factory radio or navigation system, please check compatibility, as not all radios support camera display.
Product Information
- Premium color reversing camera for installation at the third brake light
- Integrated infrared illumination for excellent night vision
- The trailer hitch ball is visible in the camera image
- Adjustable camera tilt angle
- E-mark and CE approval
- Camera display on a separate monitor or on the radio/navigation display (depending on selection and compatibility)
Scope of Delivery
- AMPIRE color reversing camera for installation at the third brake light
- Template for mounting the reversing camera to the third brake light
- Hole drill for mounting the reversing camera to the third brake light
- 5-inch or 7-inch display or Plug & Play connection adapter for radio/navigation
- PWM signal filter (included only with versions using a separate display)
- Pre-assembled wiring harness
- Connection instructions (German)
- Coding instructions (German, only for radio/navigation connection)
Installation time: approx. 4–5 hours
The Following Connection Options Are Available for Camera Display

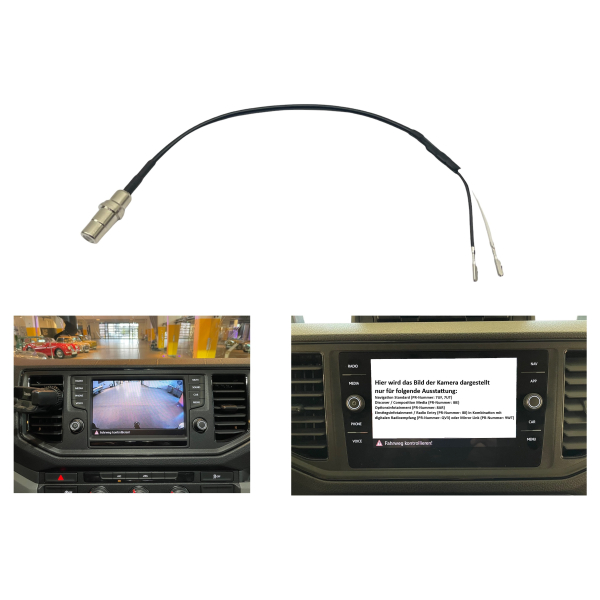

Connection adapter for direct camera connection to the radio/navigation unit:
Use this option ONLY if your VW Crafter is equipped with one of the following radio or navigation systems:
- Navigation Standard (PR number: 7UF or 7UT)
- Composition Media (PR number: I8E)
- Discover Media (PR number: I8E)
- Options Infotainment (PR number: 8AR)
- Entry Infotainment / Radio Entry (PR number: I8I) in combination with Digital Radio Reception (PR number: QV3) or MirrorLink (PR number: 9WT)
-
NOT suitable for other radio/navigation systems such as Radio Ultralow PR number I7D. Always use a separate display for these vehicles!
With this option, the reversing camera image is displayed on the radio/navigation screen immediately after reverse gear is engaged.
For this connection variant, control unit 5F Information Electronics and control unit 10 Parking Assistance (if installed) must be coded for reversing camera functionality. These instructions are, of course, included. Final coding is carried out using a standard diagnostic system according to our installation guide (e.g. VCDS, VCP, ODIS, etc.).
Connection option including 5-inch or 7-inch display
Use one of these options if your VW Crafter is equipped with a radio that does NOT support reversing camera display. In this configuration, the reversing camera is activated via the reverse light signal, and the camera image appears immediately on the additional display when reverse gear is engaged. More information about the available displays can be found under article numbers RVA051, RVA071, RVA072
Product Information Reversing Camera KVX-CRAFTER (included with radio or navigation connection)
- Guide lines: enabled by default (can be disabled by cutting the wire loop)
- Image sensor: CMD-III, 1/4" High Performance Digital Super Clarity Image Sensor
- Resolution: 648x488 pixels
- Viewing angle: 170°
- Vertical camera adjustment: 20°
- Video format: NTSC
- 580 TV lines resolution
- IP68 waterproof
- Integrated infrared illumination for excellent night vision
- Integrated microphone
- Minimum illumination: 0 lux
- Cable length: 10 meters with 8-pin MINI-DIN connectors
- E approval E9-10R-05.1652
- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC Approval ANSI C63.4-2003
Product Information Reversing Camera KVA-CRAFTER (included with separate display connection)
- Video standard AHD 1080P 25F
- Image sensor: GC2053 (FH8536H)
- Sensor size: 1/2.9
- Resolution: 1920x1080 pixels
- 3D noise reduction
- Sequential scanning
- Minimum illumination: 0.01 lux
- Infrared illumination for night vision
- Signal-to-noise ratio >43dB
- Automatic white balance
- Guide lines: enabled (can be disabled by cutting the wire loop)
- Horizontal viewing angle: 125°
- Vertical viewing angle: 70°
- Diagonal viewing angle: 165°
- Camera head adjustable up to 20° vertically
- IP68 waterproof protection class
- Cable length: 10 meters with 4-pin MINI-DIN connectors
- E approval E9-10R-05.1652
- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC approval ANSI C63.4-2003
Installation Notes
- Remove the third brake light and install the camera using the included template and screws (see instructions in Downloads)
- Route the wiring harness into the passenger compartment and connect it either to the separate display (5" or 7") or to the radio/navigation unit using the included Plug & Play adapter (depending on the selected version)
- Finally, code the vehicle for reversing camera functionality according to the included instructions (only for the "Connection Adapter for Radio/Navigation Unit" version)
Additional Notes
- The versions with a separate 5-inch or 7-inch display can be used without restrictions in all VW Crafter SY models.
- The version with the connection adapter for displaying the reversing camera image on the radio/navigation screen cannot be used in all VW Crafter models. Please observe the compatibility information and PR number requirements.
-
NOT suitable for the new VW Crafter facelift from approximately model year 2025. For these vehicles, use the retrofit kit with article number RVC-CRSY-FL-ZUB
-
NOT suitable for VW Crafter with flatbed or box body (type SZ). For these vehicles, use either retrofit kit article number RVC-CRSZ or RVC-CRSZ-ZUB
Downloads
Professional Installation Required?
We also offer this product including complete installation at a fixed price (additional charge €419). Appointment requests can be submitted via our Customer Service (www.wibutec.com/kontakt). Please always include your vehicle identification number (VIN) when making an inquiry.
