Retrofit kit Original Volkswagen Cruise Control System / GRA including simultaneous conversion to multifunction steering wheel for VW Touran 5T from production date 30.07.2018 (factory-installed leather steering wheel only)
The original Volkswagen cruise control system for controlling the vehicle speed assists the driver in maintaining a constant speed. Especially on long journeys and when towing a trailer, you will travel more comfortably and can take your foot off the accelerator pedal. When the brake or clutch is pressed, the function is automatically deactivated; the resume function allows the automatic restoration of the previously set speed. The easy and intuitive operation ensures maximum driving comfort.
Function overview:
- All functions identical to a factory-installed cruise control system
- The set speed is displayed in the multifunction display
- When cruise control is active, the green GRA symbol is displayed in the instrument cluster
- You can increase the speed using the + button
- You can reduce the speed using the – button
- You can resume the last stored speed using the Resume button
- Automatic deactivation when pressing the brake
- Automatic deactivation when pressing the clutch (manual transmission)
- The vehicle is simultaneously upgraded to a multifunction steering wheel
Further information on operation can be found in your vehicle owner’s manual.
Additional detailed information can be found under the “Questions and Answers” tab.
This set is compatible with the following vehicles:
- VW Touran 5T from production date 30.07.2018 WITHOUT installed multifunction steering wheel
Would you like to order our retrofit kit and are unsure whether the requirements are met?
We will gladly provide you with the individual equipment list of your vehicle free of charge – part of our customer service! Please use the subject “Equipment inquiry” in our contact form via the following link: >> to the contact form <<

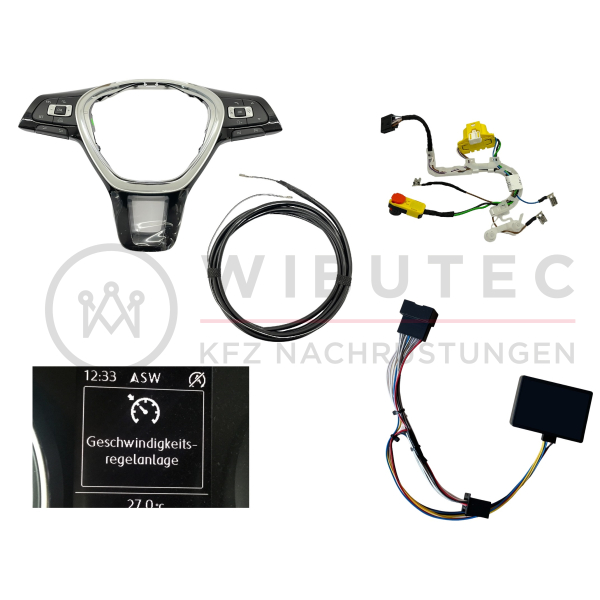

Scope of delivery:
- 1x Original VW multifunction buttons with GRA function (depending on model)
- 1x Original VW steering wheel trim, gloss black, for multifunction buttons with GRA function (depending on model)
- 1x Original VW wiring harness for airbag with multifunction buttons (depending on model)
- 1x Plug & Play activation module for cruise control
- 1x pre-assembled wiring harness / control wire
- 1x installation and coding instructions (German)
Installation time: approx. 2 – 3 hours
Info: This retrofit kit is assembled individually for your vehicle based on the vehicle identification number; therefore, the scope of delivery may vary slightly and differ from the parts shown in the photos. You will always receive all parts required for the retrofit!
⚠ Important note:
For VW Touran models without multifunction steering wheel and without an already installed Highline diagnostic interface / gateway, this must also be replaced (if the vehicle is equipped with an assistance camera (PR number QK1), a Highline diagnostic interface / gateway is always installed and does not need to be checked).
You can check whether the currently installed diagnostic interface / gateway is compatible as follows:
- Connect the vehicle to a diagnostic system (e.g. VCDS) – open control unit address 19 – in the info field, for example, the following appears:
- Gateway LOW = low = not compatible
- Gateway MED = medium = not compatible
- Gateway HIGH = high = compatible (the currently installed control unit does NOT need to be replaced).
- A new Highline diagnostic interface / gateway can be ordered here under item number GW-TO5T
Additional notes:
-
ALSO suitable for models with Front Assist incl. City emergency braking without ACC
-
ALSO suitable for hybrid and electric vehicles
-
ALSO suitable for vehicles WITH installed speed limiter (PR no. 8T9); depending on the selected attributes, our retrofit kit includes a new steering column switch without speed limiter and without MFA buttons
-
ONLY suitable for vehicles WITHOUT multifunction steering wheel; for vehicles with multifunction steering wheel please use our retrofit kit with item number GRA-TO5T2
- The cruise control system must be coded after installation using VCDS, VCP, VC-tool or ODIS according to the enclosed instructions
Installation information:
- Install the new steering wheel buttons including trim
- Route the supplied control wire for cruise control (not required if limiter is present)
- Install the Plug & Play activation module for cruise control
- Activate the cruise control according to the enclosed instructions, e.g. via VCDS, ODIS, VCP etc.
Installation service required?
We also offer this item fully installed at a fixed price (surcharge €150.00).
Appointment requests at:
kundenservice@wibutec.de. Please always include the vehicle identification number, otherwise your request cannot be processed.
