Retrofit Kit Rear View Camera incl. Interface for Volkswagen Golf 8
The VW Golf 8 has been equipped with vehicle diagnostic protection, known as SFD, since its market launch. When retrofitting an original VW rear view camera in these vehicles, the car must either be unlocked online via Volkswagen using a paid action code or manually coded with significant effort – which is only possible if the SFD protection is temporarily disabled during coding.
In vehicles produced from around March 2024, the manufacturer already uses the next generation vehicle diagnostic protection TYP2, known as SFD2. As of April 2026, not all of these vehicles can be unlocked and therefore cannot be coded (not even online via action code!).
For this exact reason, we have put together a kit that operates completely independently and does not require coding in the vehicle. Of course, the camera image is still displayed on the original radio/navigation screen as soon as reverse gear is engaged.
Tip: this kit can also be used for earlier VW Golf 8 models with SFD1 – eliminating the need for complex coding and unlocking of the vehicle diagnostic protection.

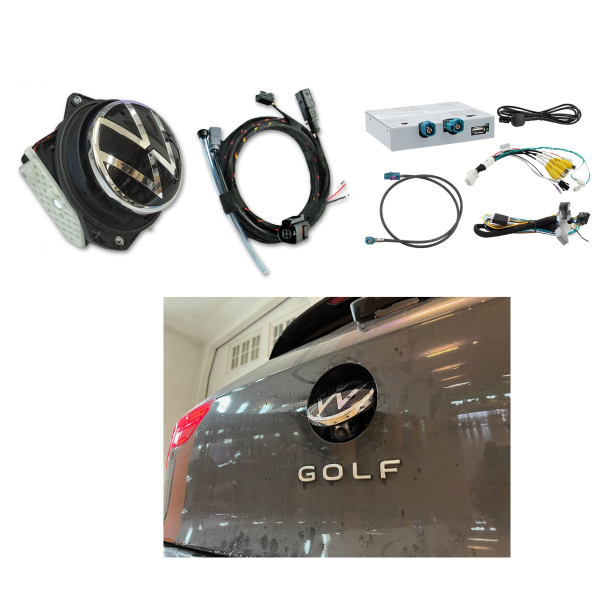

Our bundle package includes the following components:
- NavLinkz video interface with camera input (more info under item number HDA-MIB100)

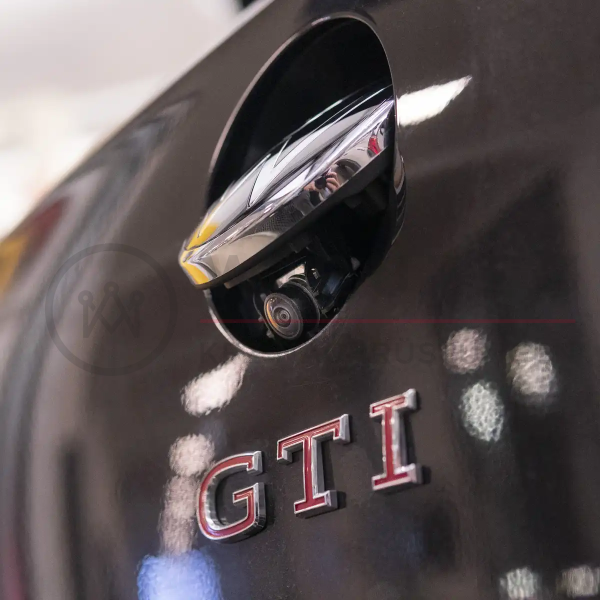

- Original Volkswagen tailgate emblem with integrated rear view camera (swiveling out)
Product information:
- Automatic switching to rear view camera when reverse gear is engaged
- Wide-angle view of the rear area on the radio/navigation display
- Static guide lines on the radio or navigation system screen
- The factory-installed parking aid can still be used (visual and acoustic, if installed)*
Compatible with the following vehicles:
- VW Golf 8 (all model years, including vehicles with PR numbers NI1, NI7, NI8 or NI9
Requirements
- The vehicle is equipped with one of the following radio/navigation systems:
- Composition Media
- with 10 inch, 10.3 inch, 10.4 inch, 12 inch, 12.9 inch or 13 inch ultra-wide monitor
- Discover Media
- with 10 inch, 10.3 inch, 10.4 inch, 12 inch, 12.9 inch or 13 inch ultra-wide monitor
- Discover Pro
- with 10 inch, 10.3 inch, 10.4 inch, 12 inch, 12.9 inch or 13 inch ultra-wide monitor
- Ready 2 Discover Infotainment
- with 10 inch, 10.3 inch, 10.4 inch, 12 inch, 12.9 inch or 13 inch ultra-wide monitor
- therefore only suitable for systems with separate DIN head unit
-
Not suitable for vehicles with trailer assist (camera already installed in tailgate). If the vehicle has trailer assist, e.g. PR number 8A9, please contact us in advance!
-
Not sure whether this retrofit kit is compatible with your vehicle?
- We will be happy to check compatibility for you. Please send us your request including the VIN via our contact form at https://wibutec.de/kontakt/
Scope of delivery:
- 1x Volkswagen rear view camera in tailgate emblem
- 1x Navlinkz interface for rear view camera
- 1x Installation manual camera (German)
- 1x Installation manual camera interface (German)
- 1x Installation manual camera (German)
Installation time: approx. 4 hours
Installation notes:
- Remove tailgate trim and replace tailgate emblem with new emblem including integrated camera
- Route wiring harness into the passenger compartment; connection of the supplied cable is made at the camera interface
- Connect the camera interface according to the enclosed instructions (see downloads)
- No coding of the vehicle is required after installation!!
Additional notes:
- *In case of incomplete compatibility of the vehicle CAN bus with the interface or when using analog connection, the functions "dynamic guide lines" and "optical PDC display" are not available. In this case, the guide lines are displayed statically.
- In vehicles with CAN-FD, the interface must be connected analog. Please check in advance whether an analog reverse signal is available (e.g. at the reverse light). Optical PDC display and static guide lines are possible; dynamic guide lines are not available (static lines can be activated via the camera). To determine whether CAN-FD is present in your vehicle, a current diagnostic device or CAN finder is required – please send this together with the VIN to technik@wibutec.de.
Downloads
Installation service required?
We also offer this item including installation at a fixed price (additional cost €459). Appointment requests via our customer service (www.wibutec.com/kontakt). Please always include your vehicle's VIN when making inquiries.
