Retrofit Rear View Camera Kit for Mercedes GLK X204 incl. NTG4.5 / Audio 20 Interface

Retrofit Rear View Camera Kit for Mercedes GLK X204 incl. NTG4.5 / Audio 20 Interface

SKU: RVC-MBX204
Category: GLK-Klasse (X204)

649,00 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Retrofit Reversing Camera Kit incl. Interface for Mercedes GLK X204 with NTG4.5

Would you like to retrofit a reversing camera in your Mercedes GLK X204 and display the camera image directly on the original vehicle screen? This complete kit includes all required components for retrofitting a vehicle-specific reversing camera, including the matching camera interface for Mercedes vehicles equipped with the COMAND Online NTG4.5 or Audio20 NTG4.5 system.

The v.LOGiC camera interface included in the kit enables the display of the reversing camera image on the factory monitor and automatically switches to the camera view when reverse gear is engaged. In addition, the interface allows the integration of an optional front camera and offers further convenience features for camera display.

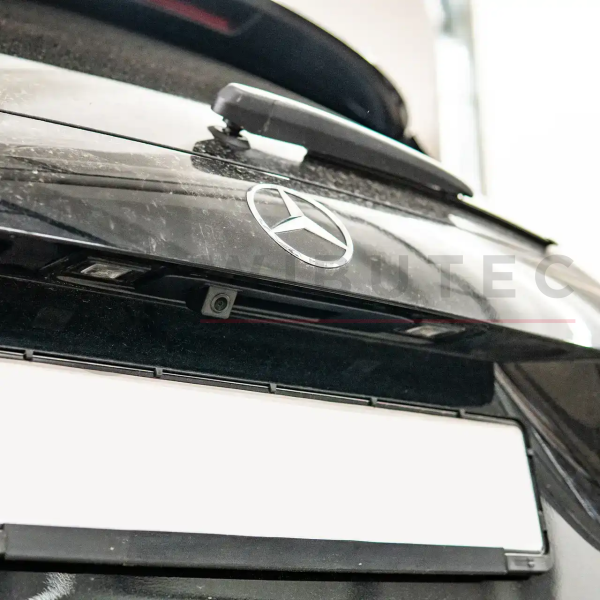

The vehicle-specific handle strip camera replaces the original tailgate handle trim and integrates discreetly into the vehicle's appearance. Thanks to its wide-angle view, you receive an optimal view of the area behind the vehicle.

Our bundle package consists of the following components:

v.LOGiC V5 Camera Interface for Mercedes COMAND Online NTG4.5 and Audio20 NTG4.5
NAVLINKZ Handle Strip Reversing Camera suitable for Mercedes GLK X204 from model year 2013

Product Information:

Automatic switching to the reversing camera when reverse gear is engaged
Display of the camera image on the original Mercedes screen
Plug & Play camera interface for easy installation
No coding required
1 reversing camera input
1 front camera input
Automatic switching to an optional front camera after parking
Manual activation of the reversing camera possible
USB port for software updates
Compatible with factory-installed video applications
Switchable parking guidelines in the camera image
Wide-angle view with a 140° diagonal viewing angle

Suitable for the Following Vehicles:

Mercedes GLK X204 from model year 2013 with COMAND Online NTG4.5 or Audio20 NTG4.5

Requirements

Mercedes GLK X204 from model year 2013
COMAND Online NTG4.5 or Audio20 NTG4.5 system
6-inch or 7-inch monitor
4-pin HSD LVDS connection on the monitor
Not compatible with vehicles equipped with a Dual-View monitor.
Not suitable for vehicles with a factory-installed reversing camera.
Not sure whether this retrofit kit is compatible with your vehicle?
- We will be happy to check compatibility for you. Please send us your inquiry including the vehicle identification number via our contact form at https://wibutec.de/kontakt/

Technical Specifications of the Reversing Camera

Sensor type: 1/4 CMOS
Video system: NTSC
Viewing angle: 140° diagonal, 110° horizontal, 90° vertical
Mirror image display
Switchable parking guidelines
Protection rating: IP68
Supply voltage: 10 - 15 volts
Power consumption: 1.5W / 200mA
Additional signal wire in the system cable for e.g. reverse signal

Downloads

Reversing Camera:

Camera Interface:

Would You Like Professional Installation?

We also offer this product including professional installation at a fixed price. Appointment requests can be made through our customer service. Please always include your vehicle identification number when making an inquiry.

This product description has been translated automatically. The original and authoritative version is the German-language description. In case of any discrepancies or uncertainties, please refer to the German version.
