Retrofit Kit for the Original Audi Park Assist System for Audi Q3 F3
Suitable for all models equipped with factory-installed front and rear parking sensors (PR equipment code 7X2)
Let your Audi Q3 park itself! The original Audi Park Assist system scans the left or right side of the road for a suitable parking space and notifies you when a sufficiently large parking space has been found. From that point on: hands off the steering wheel – the Park Assist system takes over the parking manoeuvre for you!
Product Details
- No difference compared to the factory-installed Park Assist system
- Kit includes original Audi sensors with mounting brackets

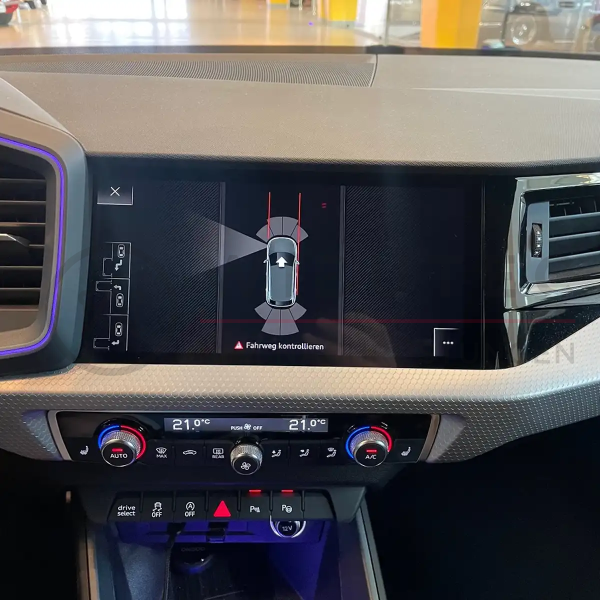

- Distances to obstacles are displayed visually
- The parking aid is upgraded to the surrounding area display
- Acoustic warning when obstacles are detected
- Automatic activation when reverse gear is engaged
- Automatic front activation when obstacles are detected
- The parking sensors can also be activated via the button
- Various parking modes are available in Park Assist mode
- Automatic parking space detection up to approx. 40 km/h
Compatibility
- Suitable for all Audi Q3 F3 models with existing front and rear parking sensors
Please also note the following very important information
This retrofit kit CANNOT be used in vehicles already protected by SFD2!
SFD stands for "Schutz der Fahrzeugdiagnose" (Vehicle Diagnostic Protection). Many vehicles from approximately model year 2024 onwards are already equipped with SFD2. In these vehicles, modifying the vehicle configuration via standard diagnostics is currently not possible. Further information about SFD and SFD2, and whether your vehicle is affected, can be found via the following link >> click here <<
Scope of Delivery
- 2x Original Audi PLA front sensor
- 2x Original Audi mounting bracket for front PLA sensor
- 2x Original Audi PLA rear sensor
- 2x Original Audi mounting bracket for rear PLA sensor
- 1x Original Audi button panel with PLA button (depending on vehicle equipment)
- 1x Original Audi PLA control unit
- 1x Wiring harness for front bumper parking sensors
- 1x Wiring harness for rear bumper parking sensors
- 1x Wiring harness for PLA button panel
- 1x Additional parts required depending on the vehicle identification number, such as trims, covers, etc.
- 1x Connection and coding instructions
Installation time: approx. 6–7 hours
Please enter the vehicle identification number during the ordering process
Installation Information
- No replacement of the bumpers is required
- The sensors are installed into the existing bumpers; the mounting positions are already marked on the inside of the bumpers
- We recommend using a punching tool to create the required openings. This tool can also be purchased or rented from us
- After installation, the vehicle must be coded for the new equipment. These steps are included in our instructions. For coding the control units, use VCDS, VCP, ODIS or another diagnostic tool compatible with the vehicle
Notes
- The retrofit kit is assembled specifically for your vehicle based on the vehicle identification number. You will receive all parts required for installation. For this reason, the scope of delivery may vary slightly, and the parts shown in the product images may differ from those supplied
- If the sensors are ordered painted in the vehicle colour, the delivery time will be extended by 2 days
Professional Installation Required?
We also offer this product including installation at a fixed price (additional charge €499). To arrange an appointment, please contact us via our CONTACT FORM. Please always include the vehicle identification number of your vehicle when making an enquiry.
