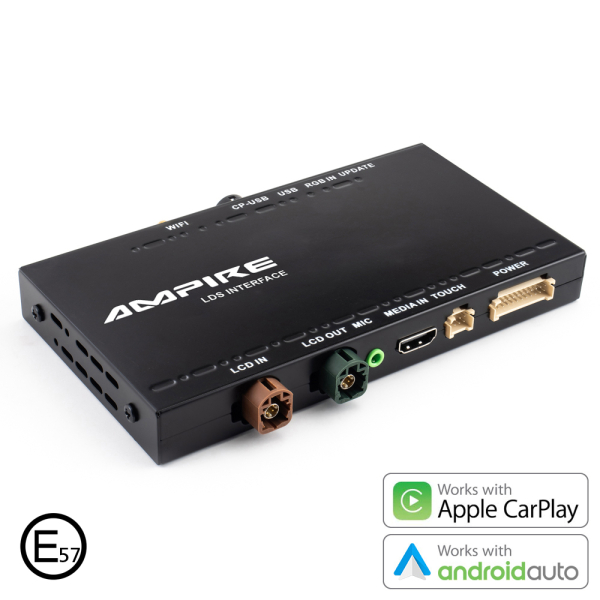

Plug&Play smartphone interface with full integration
Plug&Play smartphone interface with full integration into the vehicle’s multimedia system. Please check the compatibility list to see if a solution is available for your vehicle.
The image is displayed on the full factory monitor, and the audio is fed via the audio AUX input of your factory multimedia system. Before ordering, please check whether your factory multimedia system has an audio AUX input or can be retrofitted.
Our smartphone interface is compatible with Apple CarPlay® and Android Auto, providing a smart and safer way to use your smartphone in the car. Operation is handled via the vehicle’s original buttons and control systems. Of course, you can also use Siri and OK Google voice control via the included microphone. Everything you want to do with your smartphone while driving can be done directly via the vehicle display using Apple CarPlay® and Android Auto. You can easily access directions, send and receive messages.
If your car has a factory hands-free system, you can use it via our smartphone integration to make calls. While navigating, you can listen to your favorite music, for example via Spotify, or your favorite radio station via a radio app – while still staying focused on the road. Simply connect your smartphone to the USB port in our system and you’re ready to go.
Even more conveniently, you can connect your Apple iPhone wirelessly via Wi-Fi. Wireless Apple CarPlay® is available from Apple iPhone 5 onwards.
FEATURES
- Interface for retrofitting Apple CarPlay® and Android Auto
- Operation via OEM buttons/touchpad of the vehicle
- Wireless Apple CarPlay® via Wi-Fi antenna
- Wired Apple CarPlay® via USB (disable Wi-Fi on iPhone)
- Android Mirrorlink function (mirroring the smartphone display)
- USB input for multimedia playback
- Video playback on Apple iOS only via USB cable
- Up to 1080p HD resolution for multimedia playback
- Supports RMVB, MOV, MKV, MP4, AVI, RM
- Smartphone pairing required only during initial setup
- Integrated audio DSP with equalizer
- Analog audio output with 3-volt output voltage (audio AUX)
- Supports left-hand and right-hand drive vehicles
- Software update possible via Micro-USB input (adapter included)
- Apple Siri voice control via included microphone (no telephony via it)
APPS
- GPS navigation with Google Maps and Apple Maps and more
- Music playback with Spotify, Apple Music, Amazon Prime and more
CAMERA FUNCTIONS
- Input for front camera (CVBS)
- Input for rear-view camera (CVBS)
- Support for parking sensors (PDC)
- Support for dynamic guidelines
- Supports 360° camera systems
- 12V output for power supply of the front camera
- 12V output for power supply of the rear camera
ACCESSORIES
An adapter from MICRO-USB to USB is included in the package for possible interface software updates.
VEHICLE COMPATIBILITY
Please check before purchase and installation whether the product is compatible with your vehicle type, model year, and entertainment system. Your entertainment system must have an audio AUX input for sound output. Incompatibility may cause damage.
SMARTPHONE COMPATIBILITY
Please check before purchase and installation whether the product is compatible with your smartphone.
- Apple iOS: iPhone 5 or higher
- Google Android: Android 5.0 (Lollipop), preferably Android 6.0 (Marshmallow) or higher.
TECHNICAL DATA
- Operating voltage: 12VDC +/-10%
- Maximum current consumption: 1.35A
- Standby current consumption: 2mA
- Current consumption when off: 0mA
- USB charging current: 1100mA
- Operating temperature: -25°C ~ +75°C
- Storage temperature: -30°C ~ +85°C
- Dimensions: 166x89x27mm
- Package dimensions: 260x220x80mm
APPROVALS
IMPORTANT PRODUCT NOTE
The MEDIA IN socket on the housing is not an HDMI input for external HDMI sources. This socket is required for additional modules in some vehicle types.
INSTALLATION NOTICE
This product is designed for vehicles with a 12V battery. Do not install it in vehicles with a different voltage. Never extend the HSD signal cables. This product consists of high-precision components and should not be exposed to strong shocks. Never open the housing. To ensure driving safety and avoid violations of traffic regulations, never operate the product while driving. Optional rear-view cameras are only visible when maneuvering. Always pay attention to your surroundings and never rely solely on the camera. All installation steps should be carried out by a trained professional. During installation, the ignition must be switched off and the product should only be connected to power after complete wiring. NEVER connect or disconnect cables while powered on to avoid damage to the monitor or the product. Route the cables so that they do not come into contact with metal edges, as this may damage the wiring and cause fire. Avoid any contact with hot surfaces when wiring the main unit. High temperatures can damage the wiring and cause short circuits, arcing, and fire. Do NOT install the product in a humid environment to avoid electric shock, damage, and fire caused by short circuits. Upon receipt of the product, check that all components are included in the package. If anything is missing, inform the supplier/manufacturer. Start the engine before loading, check the interface for proper function, and verify that the vehicle interface works correctly. Provide feedback to the supplier/manufacturer if you have any questions. Please handle disassembled vehicle parts carefully during installation and avoid scratches on the dashboard. Unused connectors must be insulated to prevent short circuits. Cable connections should be securely plugged in. Avoid interference with control components such as the steering wheel, accelerator, and brake pedal.
LEGAL NOTICE
Apple and the Apple logo are trademarks of Apple Inc., registered in the USA and other countries. Android is a trademark of Google LLC. Third-party products and brand names may be registered trademarks of their respective owners.
