Reverse Camera VW Crafter SY & MAN TGE from 2017 – AHD 1080p Retrofit
Park and maneuver safely in your VW Crafter or MAN TGE: With this AHD reverse camera, you always have a clear view of the area behind your vehicle.

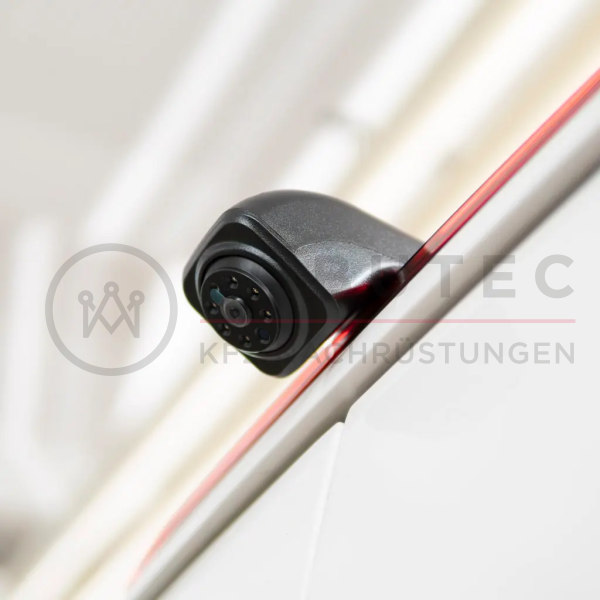

The camera was specially developed for the Crafter SY and MAN TGE from 2017 onwards and integrates discreetly into the brake light housing. Thanks to high-resolution 1080p AHD technology, you get a sharp and detailed image – even in poor lighting conditions.
Advantage over the original reverse camera: Integrated infrared LEDs provide significantly better visibility at night. In addition, the camera angle can be adjusted individually, allowing you to adapt the viewing area perfectly to your requirements.
The second generation of this camera features an improved camera chip with even higher image quality and more stable display performance.
TECHNICAL DATA
- Video standard AHD 1080P 25F
- Image sensor: GC2053 (FH8536H)
- Image sensor size 1/2.9
- Resolution 1920x1080 pixels
- 3D noise reduction
- Sequential scanning
- Minimum illumination: 0.01 Lux
- Infrared illumination for night vision
- Signal/noise ratio >43dB
- Automatic white balance
- Horizontally mirrored image display
- Guidelines: enabled (can be disabled by disconnecting the cable loop)
- Horizontal viewing angle 125°
- Vertical viewing angle 70°
- Diagonal viewing angle 165°
- Camera head vertically adjustable up to 20°
- Protection class IP68 waterproof
- Operating voltage: 9-16 Volt DC
- Power consumption: max. 250mA
- Operating temperature: -20° to 70°C
- Color: black
- Cable length: 10 meters with 4-pin MINI-DIN connectors
- E approval E9*10R06/00*22328*00
- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC approval ANSI C63.4-2003
PACKAGE CONTENTS
- Reverse camera
- AK1037 power supply with blue connectors
- AK1039 Mini-DIN extension cable 10m with blue connectors
DOWNLOADS
ORDER NOTICE
ORDER NOTICE
For direct wiring in vehicles with pulse-width modulated reverse light control, we recommend using the optionally available signal filter with item number
AC-PNF-RVC2
This camera is a high-resolution AHD camera with 1080P resolution and 25 frames/second. This camera can only be connected to compatible monitors, car radios or interfaces. If the camera input on your monitor only supports CVBS, FBAS or NTSC video signals, this AHD camera is not suitable. In this case, use the identical CVBS camera with NTSC video signal instead.
Order your installation accessories at the same time – the following products are optionally available:
- AMPIRE 5-inch display / monitor RVA051
- AMPIRE 7-inch display / monitor RVA071
- AMPIRE 7-inch display / monitor RVA072
- AMPIRE 10-inch smartphone display / monitor with Apple CarPlay® and Android Auto CPM103
- AMPIRE 10-inch smartphone rear-view mirror display / monitor with Apple CarPlay® and Android Auto CPS091
- AMPIRE signal filter for reverse cameras AC-PNF-RVC2
Would you like to display the camera image on the original screen of the installed radio or navigation system?
- For many vehicle models with a color display, an additional interface is available that enables camera display on the radio or navigation system screen. More information at Interface for Camera Integration.
- We are also happy to assist you in selecting the correct interface. Please contact us with your vehicle identification number via our contact form at https://wibutec.de/kontakt/
