AMPIRE parkeerhulp voor voor- en achterbumper, GPS-gestuurd, matzwart, montage achter

AMPIRE parkeerhulp voor voor- en achterbumper, GPS-gestuurd, matzwart, montage achter

SKU: PSI400-GPS-SET
Categorie: Parkeersensoren voor en achter

448,00 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Levertijd: 3 - 5 Werkdagen (DE - int. verzendingen kunnen verschillen)

set

Beschrijving
Beoordelingen
PDF (1)

Finally, you have found a parking space. You do not want to hold up the traffic behind you any longer than necessary, and the parking space is not that large after all. Now it is time to act quickly but with full awareness. Even a small moment of inattention can have serious consequences. Even a minor parking bump can quickly result in costs of EUR 500 or more.

Like a passenger guiding you with a trained eye, the AMPIRE front/rear parking assistance system helps you with this small challenge – only much faster and more reliably. The system activates automatically via GPS and enables seamless monitoring of the front area. You are warned acoustically in good time about obstacles, protecting you from personal injury and property damage – and parking becomes child’s play. The sensors are almost flush-mounted in the bumper.

Variant

Installation location: front bumper and rear bumper
Activation: automatic, front controlled via GPS signal
Installation type: glued into the mounting hole from the rear
Color: matte black painted

Your benefits at a glance

Seamless monitoring in front of the vehicle
Automatic activation via GPS at speeds >15 km/h
Automatic deactivation via GPS at speeds <15 km/h
Timely warning of obstacles
Prevention of personal injury and property damage
Easy parking in tight parking spaces
Self-diagnosis function
Acoustic warning

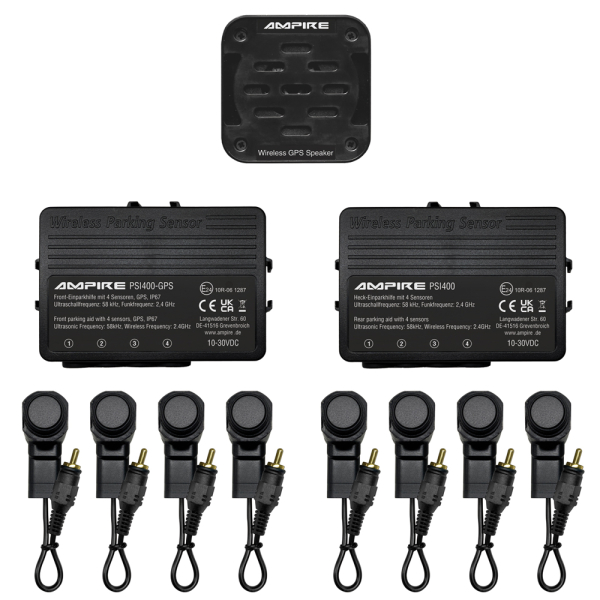

4 matte black painted ultrasonic sensors for front bumper installation
4 matte black painted ultrasonic sensors for rear bumper installation
22 mm drill hole, 24 mm installation depth
Adjustable range between 30 cm to 100 cm and 30 cm to 260 cm
Range (factory setting) from 160 cm to 30 cm
Very easy installation via plug connections
Wireless connection between the control unit and the speaker, maximum range 12 m
E-type approval E24 10R-06 1287

Technical data

Ultrasonic frequency: 58 kHz
Detection angle: vertical/horizontal: 60° +/- 10°
Radio frequency between control unit and speaker: 2.4 GHz
Temperature range: -40°C to +80°C
Operating voltage: 10–30 VDC
Control unit current consumption (max): 55 mA
Speaker current consumption (max): 100 mA
Current consumption ACC off: 0.35 mA
Sensor cable lengths: 235 cm
Ranges
- Level 1: 30–100 cm
- Level 2: 30–130 cm
- Level 3: 30–160 cm (factory setting)
- Level 4: 30–210 cm
- Level 5: 30–260 cm
Total weight: 491 g

Optional accessories

Hole saw: LS22.0

Sensor positioning note

Proper functioning of the PDC depends on the position and orientation of the sensors; therefore, it is important to check several conditions before installation. The area inside the bumper must have sufficient depth and space for trouble-free installation. The sensors must be mounted between 35 and 65 cm high in the bumper. The sensor surface must be aligned vertically to the ground. The distance between the sensors can vary between 30 and 70 cm and should be evenly distributed. The distances of the outer sensors must be equal.

Handling note

On vehicles equipped with a trailer hitch, the PDC system should not be activated when towing a trailer. In some cases, smaller objects, bushes, poles or posts may not be detected by the system, which can lead to vehicle damage without human intervention.

Installation note

Please connect the positive terminal of the speaker to the ignition line (KL15) and not to permanent positive in order to avoid deep discharge of the vehicle battery. Installation of the sensors in metal bumpers is not possible.

Safety note

Responsibility for parking and other maneuvering operations lies solely with the driver. The electronic parking assistance system is a driver assistance system but cannot replace the driver's attention. Due to physical limitations, ultrasonic measurement may also create blind spots in object detection, especially in cases of poor sound reflection. Therefore, the assessment of obstacles always remains the responsibility of the driver.

Additional search terms

Acoustic Parking System (APS), Park Distance Control (PDC), Parking Assist Module (PAM), Parktronic, Parking Assist System (PAS)

Downloads

Installation requested?

We will be happy to carry out the complete installation on your vehicle at a fixed price of only 599 euros. Appointment requests can be made by email via our contact form. For an additional charge of only 59 euros, the sensors can be painted in the vehicle color by a neighboring paint shop. The complete installation takes approximately 6 hours.
